Nixie Clocks

Operation manuals for clocks:

NIXIE CLOCK

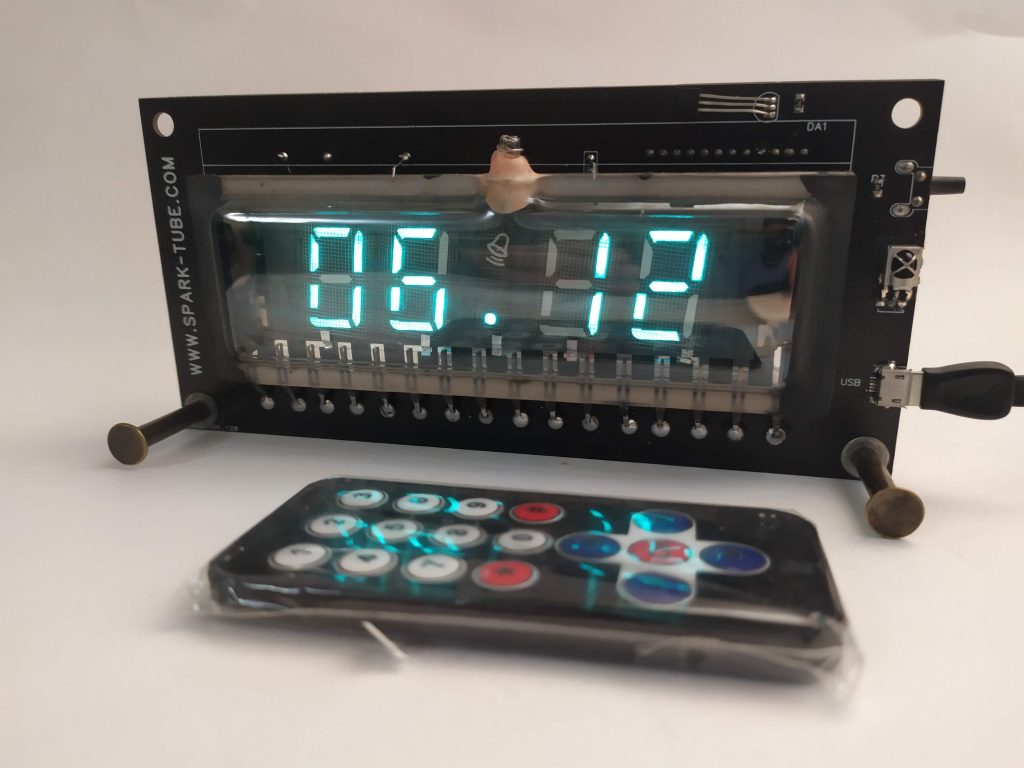

VFD CLOCK (ILC1, IVL1, IVL2)

VFD CLOCK (ILC3)

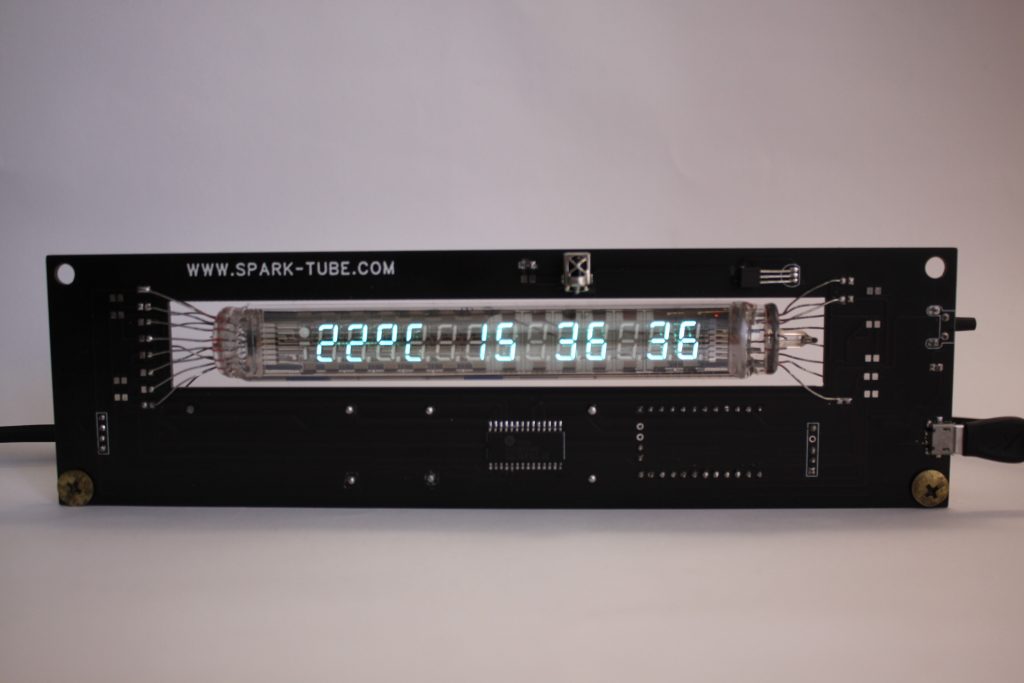

VFD CLOCK (IV-27)

NUMITRON CLOCK IV-9

NUMITRON CLOCK IV-19

HEALER

HEALER PROx5

ALL OTHER MANUALS

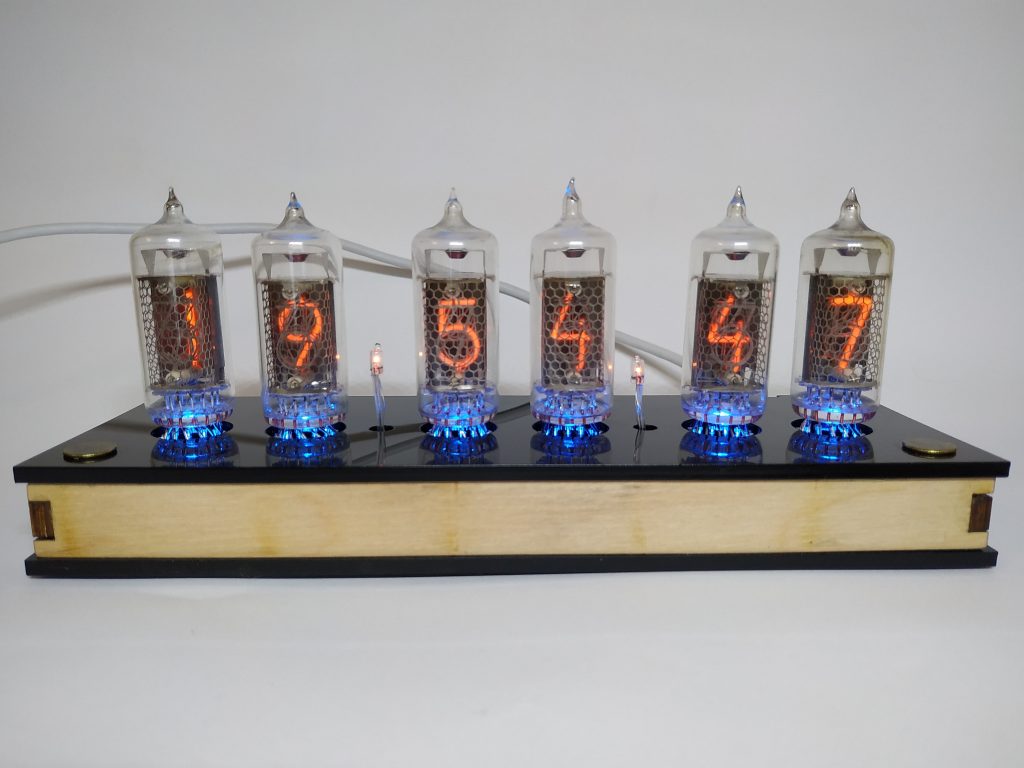

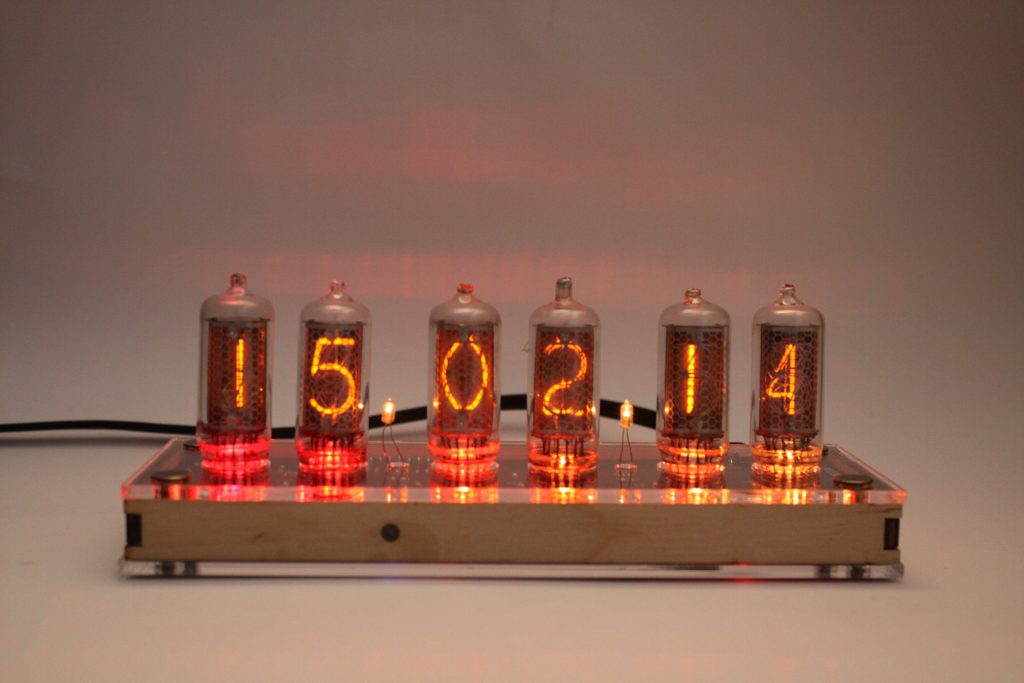

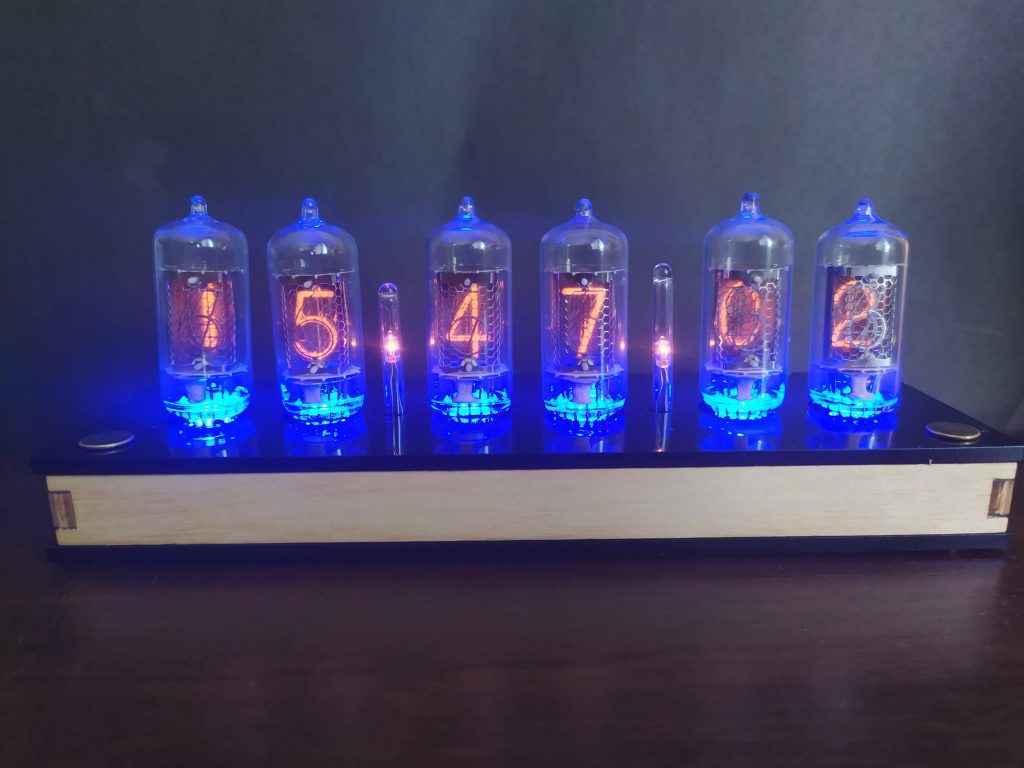

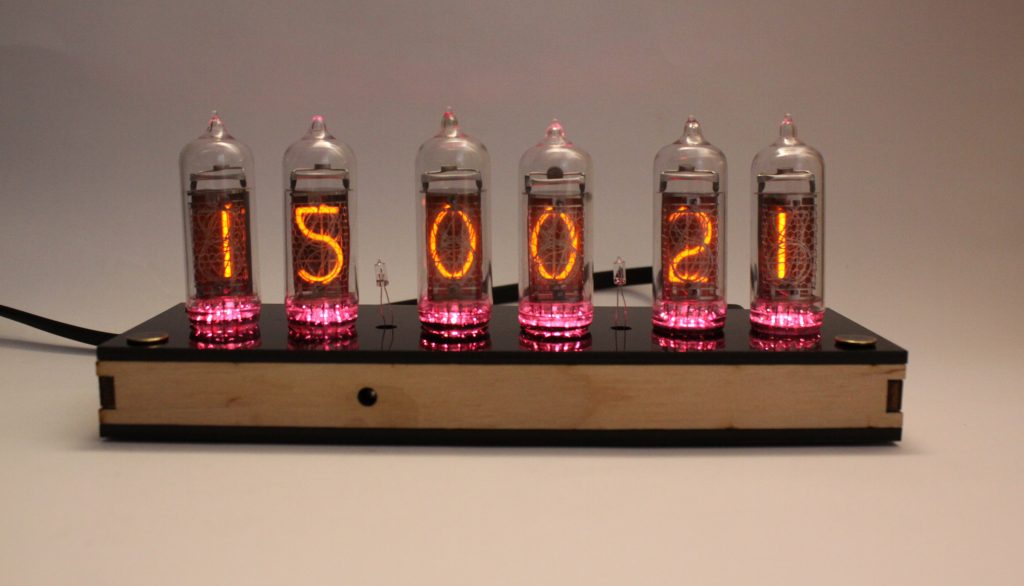

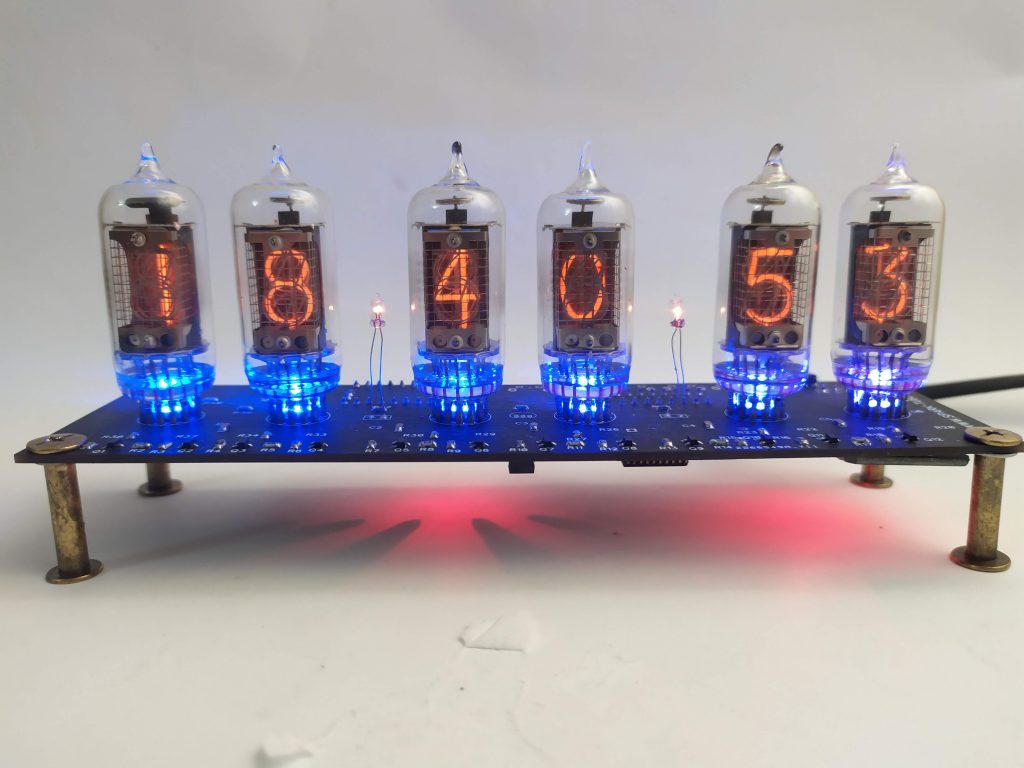

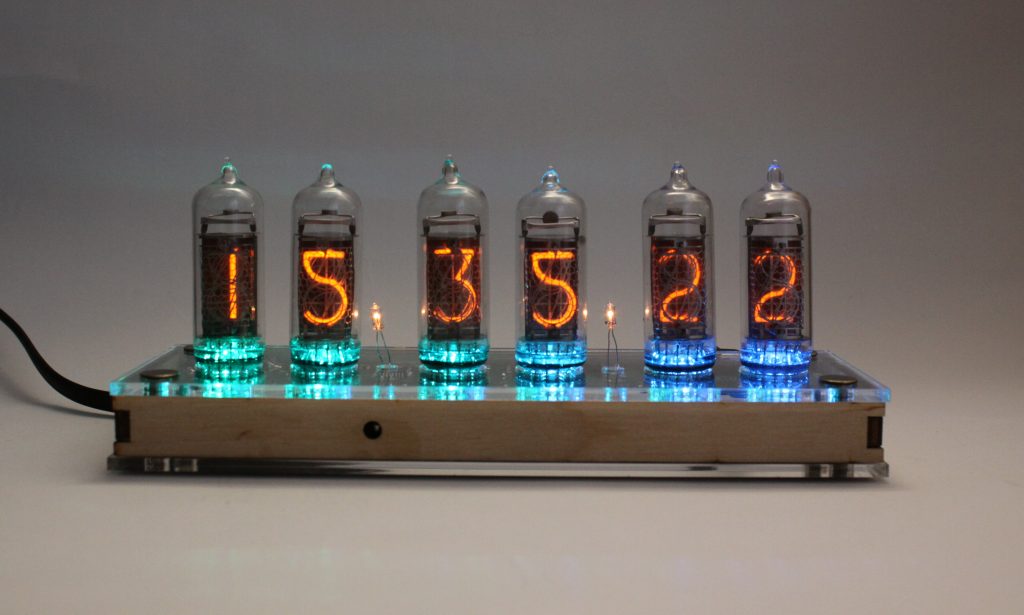

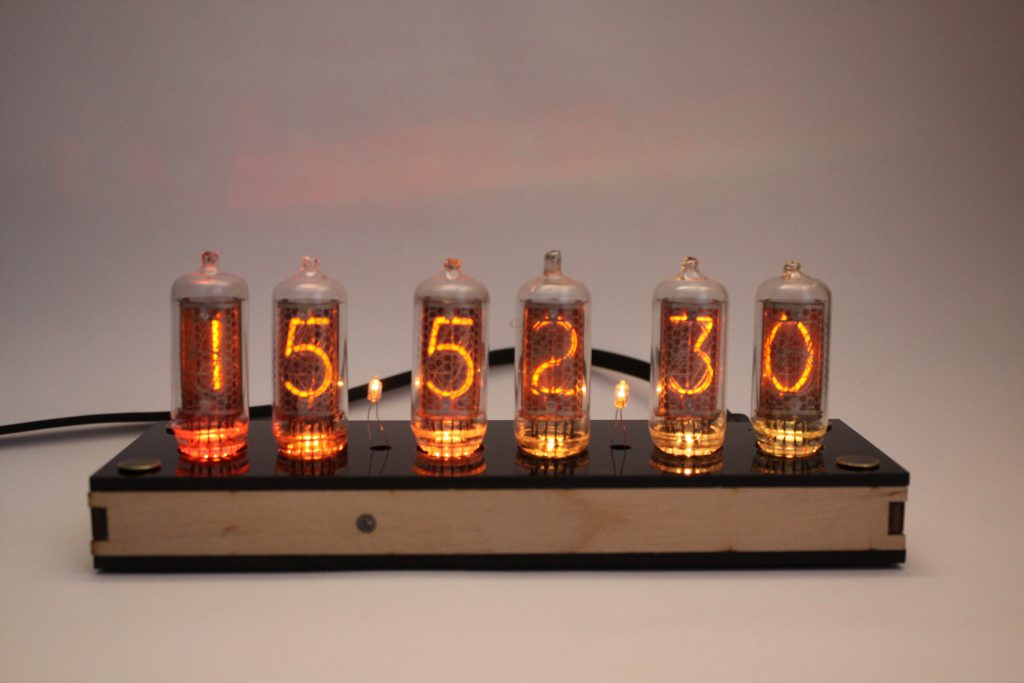

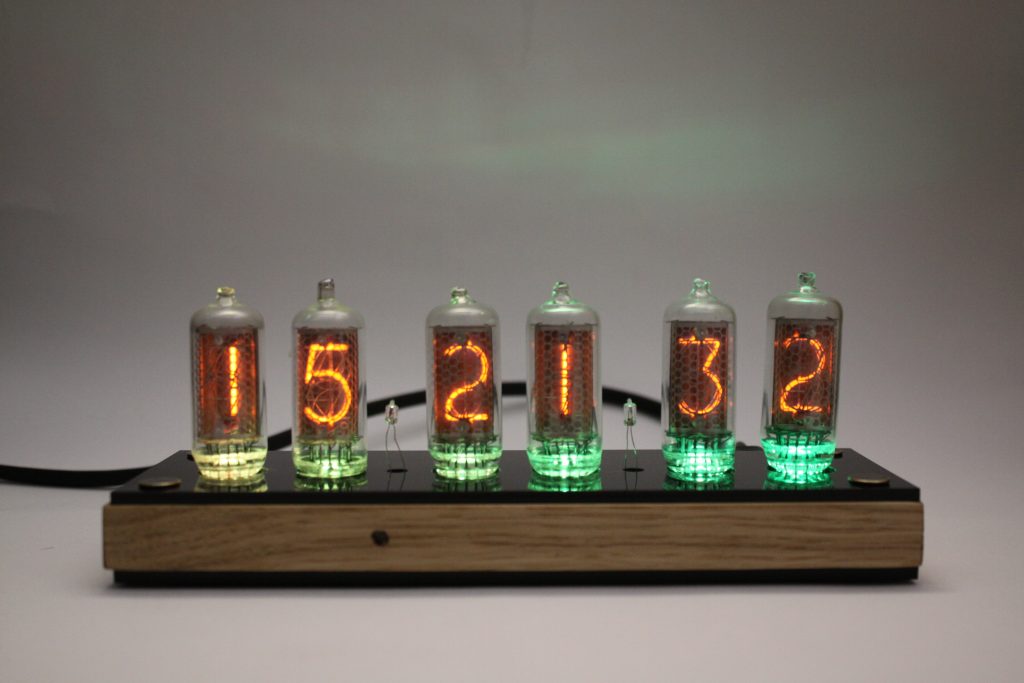

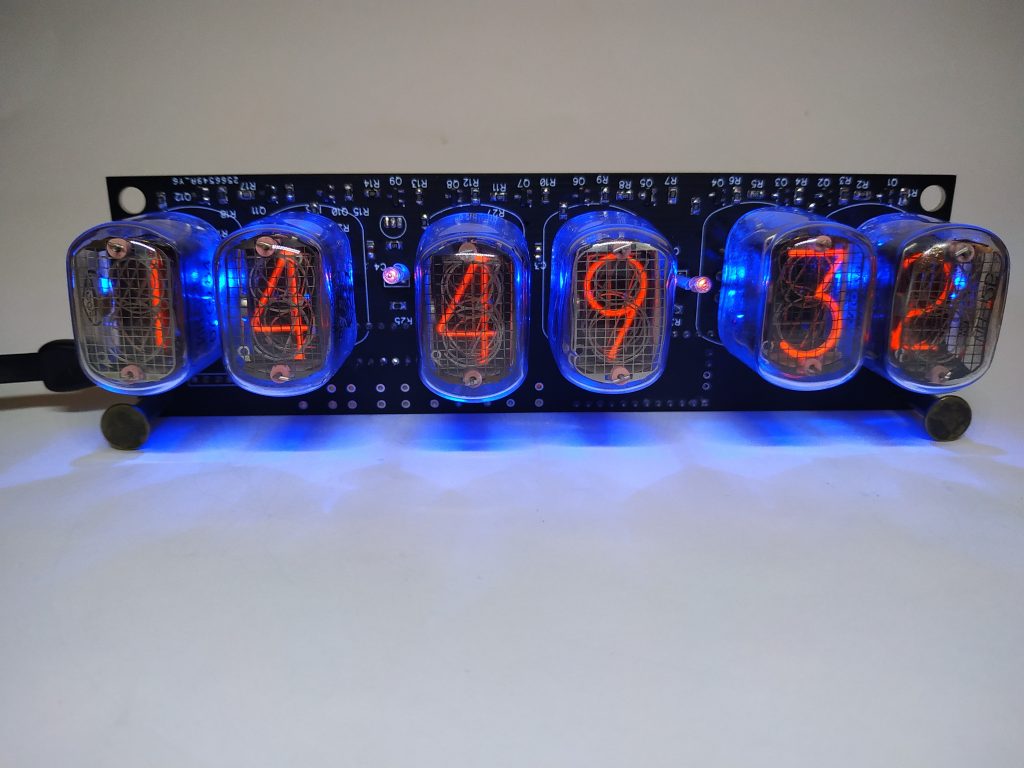

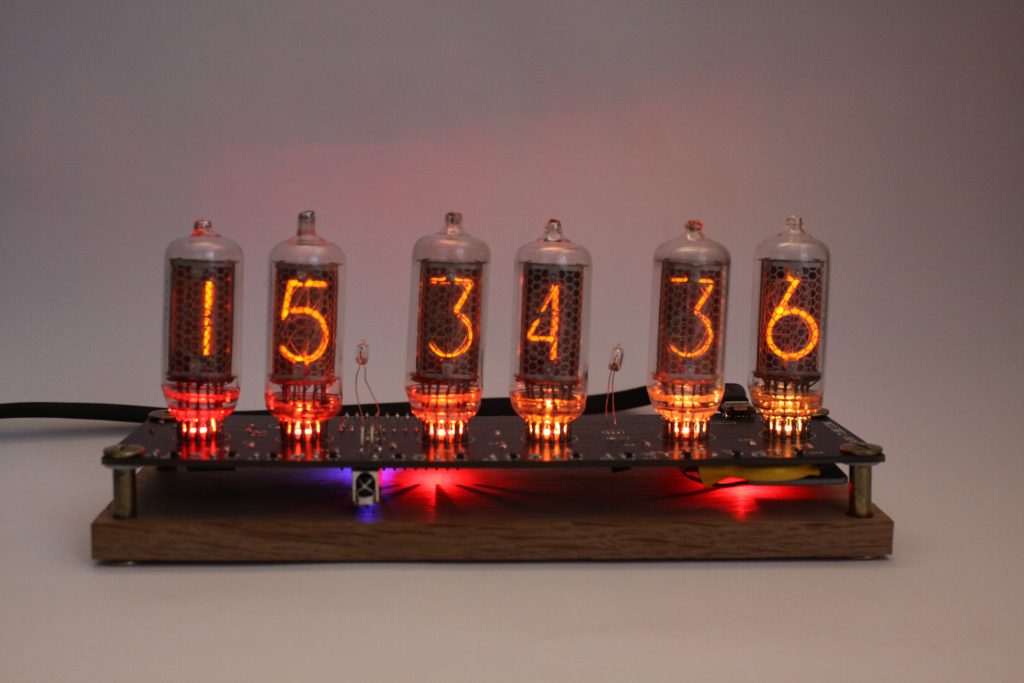

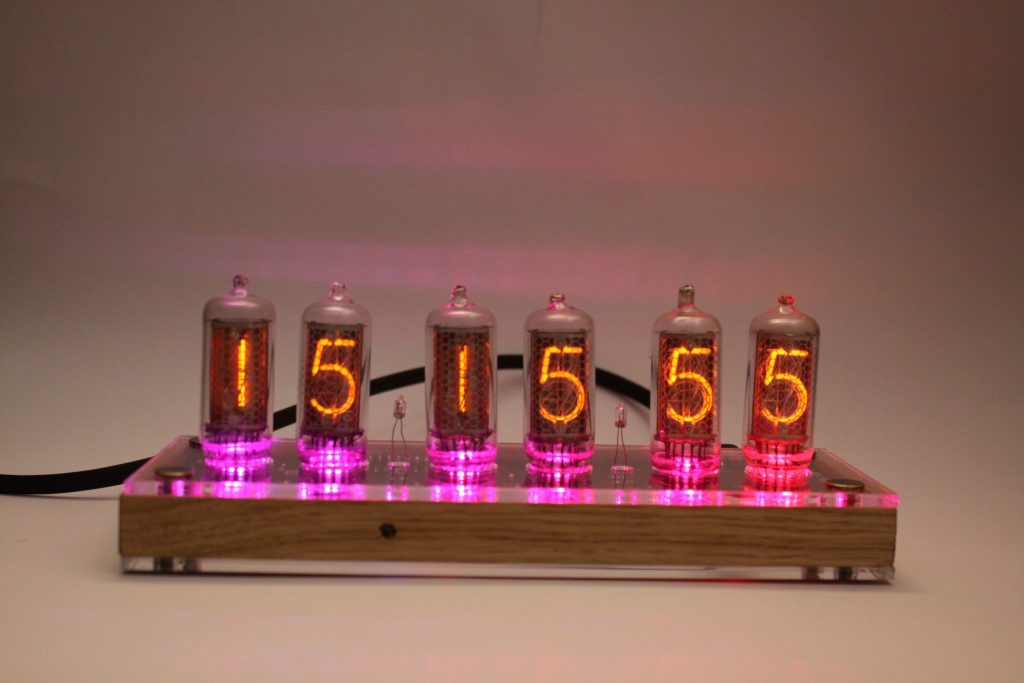

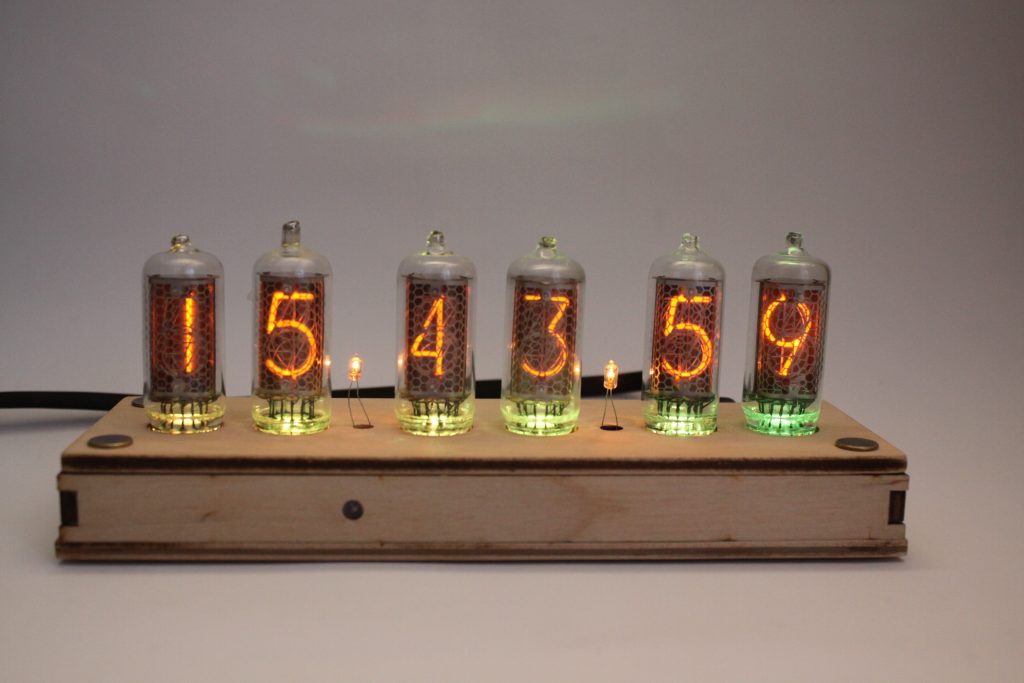

This Vintage Nixie or VFD Tube Clocks is handcrafted using new old stock tubes. These Nixie tubes are at least 30 years old, have never been used before and come from old military stock. Old school technology combined with an art deco style and handmade enclosure.


_________________ SOFTWARE FEATURES______________________________________

  • Hours, Minutes and Seconds display
  • 12 or 24 hour operation modes
  • EU and US date format (DDMMYY or MMDDYY)

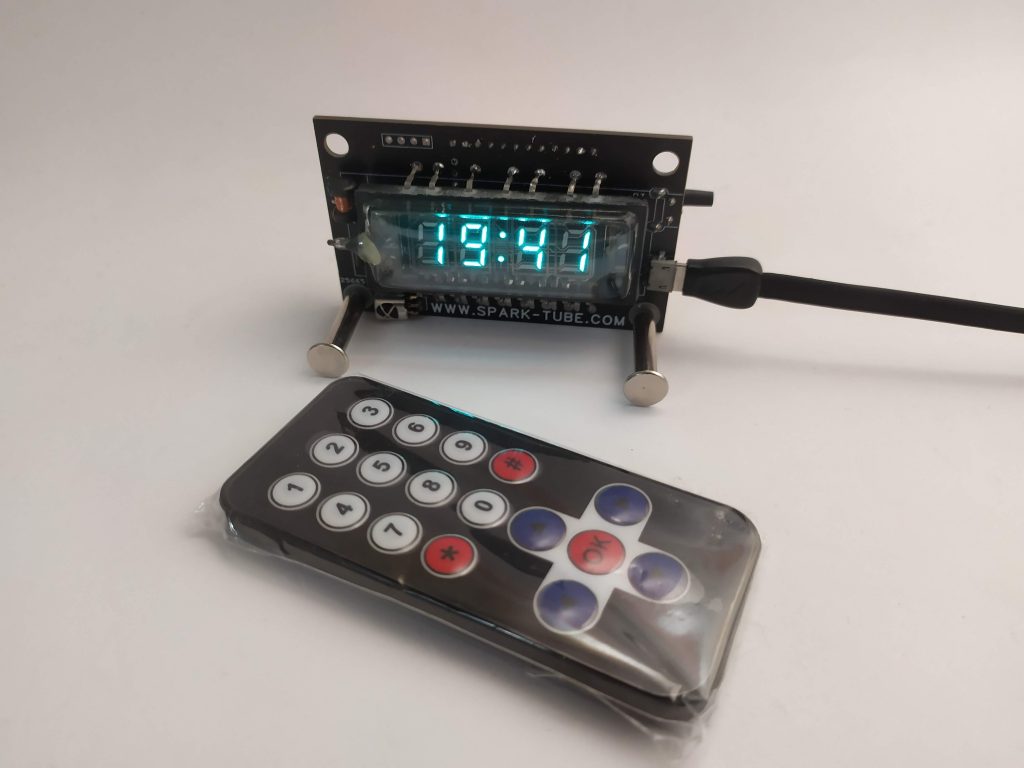

  • Remote control
  • Temperature sensor, accuracy +-2%
  • Auto Date Display
  • Auto Temperature Display C or F
  • Simple time setting using one button or remote control
  • “Slot Machine” Cathode poisoning prevention routine
  • Programmable 16 milions colors LED tube lighting
  • Neon colon indicators blinking at 1 Hz
  • Tubes are driven in high frequency dynamical indication and provide service for many years
  • All settings are stored in non-volatile memory
  • First tube can be disabled if hours lower than 10 (optional)

________________HARDWARE FEATURES_______________________________________

  • Tubes type: 4 or 6 NIXIE tubes 1970-1990
  • Voltage: DC 5V and microUSB plug
  • Dimensions: 170x50x100mm
  • Power consumption: 300mAh
  • Time accuracy (+/- 1 second per month) is provided by built-in RTC (Real Time Clock) based on extremely precise DS3231 module with temperature compensation and backup with CR2032 battery
  • Not AC frequency dependent – works in all countries.
